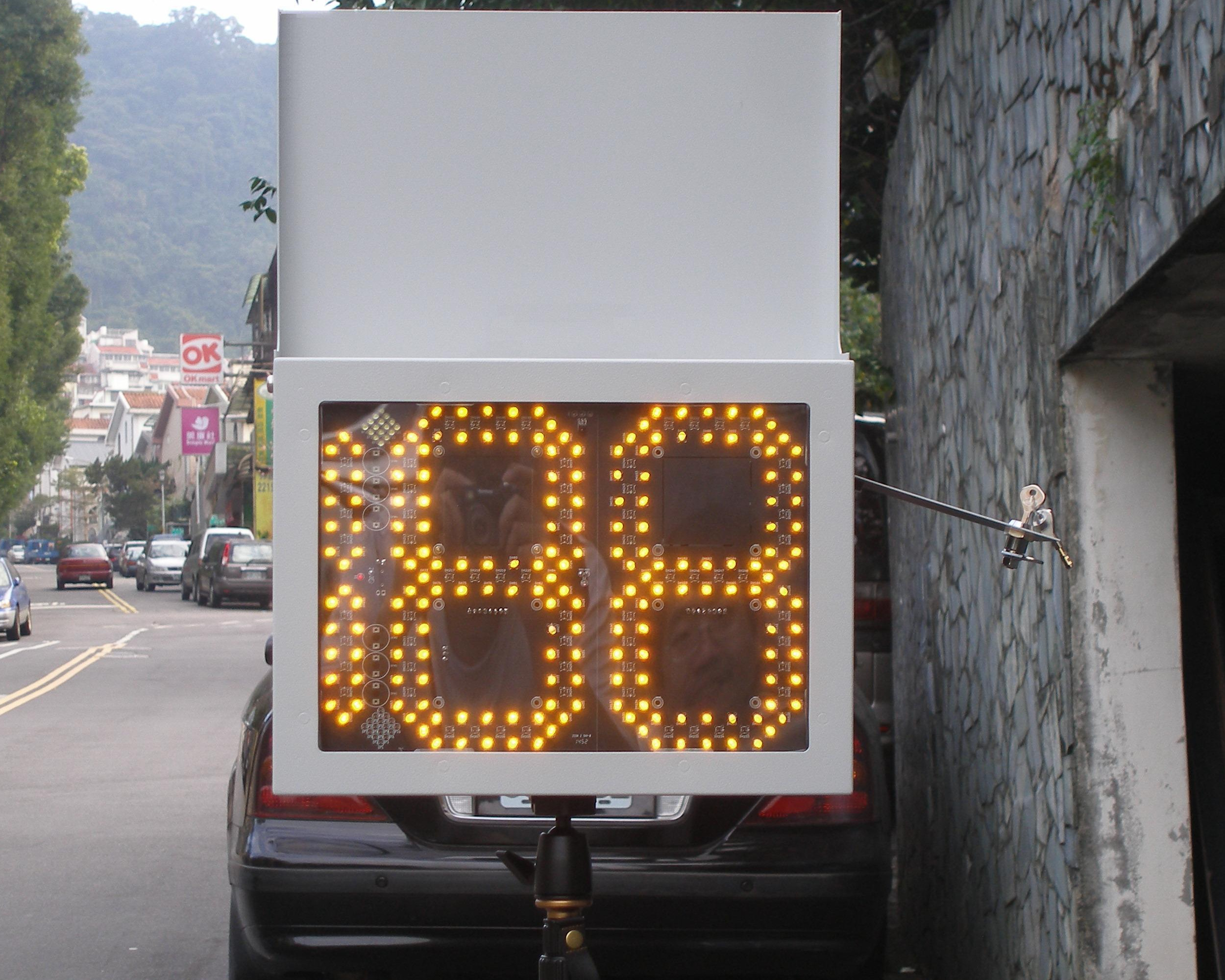

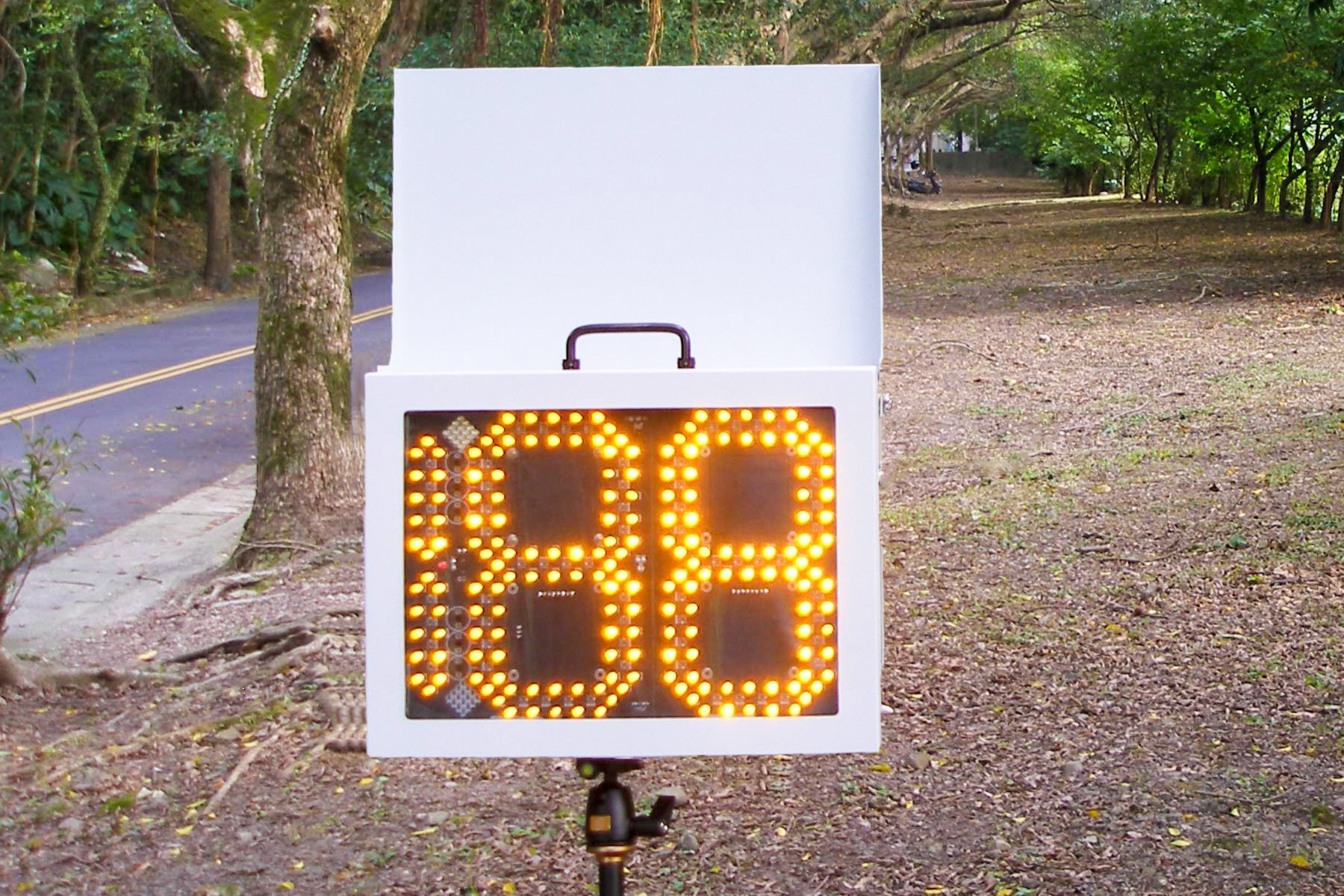

Portable Type Radar Sign

Radar sign can help cars reduce speed, enhance driving behavior, reduce violation of traffic laws. Portable type radar signs are light weight, allowing it to be carried and set up at any location.

Suitable for many use that require moving the sign around, such as aiding policemen in traffic control, especially during handling of accidents..

Buy Sample Now

*For a distributer price or more than 10 unit, please contact us for quote.


Electrical Key Features:
  • Highly power efficient LED driver with efficiency peaking at 92%, provide best power saving performance.
  • Bi-directional traffic sensing capability.
  • Automatic day-light sensing allows power saving during the night by lowering LED brightness.
  • Standar power will be DC12V. Provide choice of alternative power as option; by AC or solar cell.
  • All electrical components used are industrial grade.
Box Key Features:
  • Master keys available as an option, allowing easier daily maintenance.
  • Highly integrated metal box, choice of IP22/IP65 suitable for out door usage. IP65 box have circuit board dampening protection device, can extend the products life time. Good ventilation design, no overheating.
  • Choice of box metal, made of 5052 Aluminum/galvanized SPCC/Stainless sheet.
  • Weather UV resistant 5.5mm thickness PC window plate, enables good protection for internal equipments. Also UV resistant powder coating metal box.
Size: 10 Inch 14 Inch 18 Inch 22 Inch
Type: Station Portable Station with heat stopper
IP Code: IP22 IP65
Mount Window: Single Door Double Door
Mount Direction Front Mount Rear Mount Front and Rear Mount
Power: UPS with AC Solar Power AC DC
Display Type: 88 Digit 188 Digit 18 Digit
Box Material: 5052 Aluminum Galvanized SPCC Stainless
Door Opening Side: Right Left
LED Color: Amber Red
Display LED: 5mmD round 5mmD Piranha
Radar Type: Standard Long distance
Metric or Imperial Speed Display: miles/hr km/hr
Version 3V0

Part Number:???

Download Specsheet
